Industry Printing Handheld Terminal LS-P501

Industry Printing Handheld Terminal LS-P501

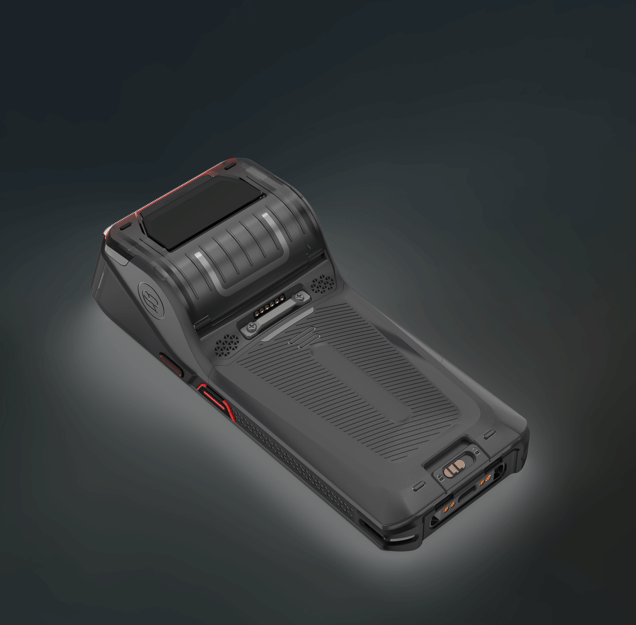

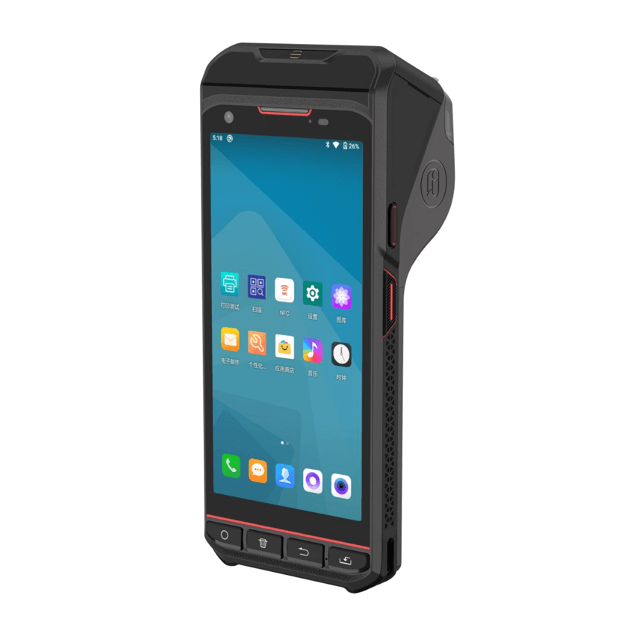

The Industry Printing Handheld Terminal combines a rugged mobile computer with an integrated printer. It enables on-the-spot printing of labels, receipts, and tickets, streamlining workflows in logistics, retail, and field services.

Model: LS-P501
Processor type: MT6765X Octa-core 64bit 2.3Ghz
Screen size: 5.5" IPS color display, 720*1440 resolution
Software development kit (sdk): Yes
Camera: 2MP+13MP
OS: Android 13
Printer type: Thermal/ Label printing
Memory: 2GB+32GB (Optional 4+64G)
Battery Capacity: 7.6V-2750mAh (3.8v 5500mAh)
Network: 4G/3G/2G
Interface: Type C
WiFi 5: 802.11 ac/a/b/g/n
BT: BT5.0
Scanner sensor: Yes(optional) Honeywell N5703 N6703,6602
Card Slot: SIM *1+PSAM*1
Dimensions: 214.4x 84.2 x 16.7mm
Certificates: CE/ROHS
Weight:<500g (Including batterry)

Get A Quote

Contact form

View full details

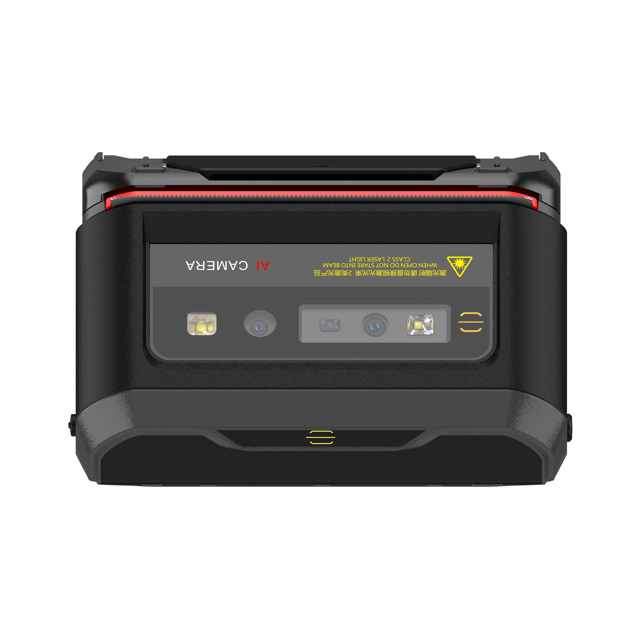

1D/2D Barcode Scanner

4G Mobile Computer with Optiona scanner engine Honeywell N5703 N6703,6602 – Fast, Reliable & Industrial-Grade!

The NFC module is enabledOpen up more possibilities

Featuring NFCtechnology, this device enables fast and convenient contactless data exchange. The rear-mounted NFC sensor ensures seamless scanning in logistics, retail, and access control applications, improving efficiency and user experience. Ideal for modern mobile workflows

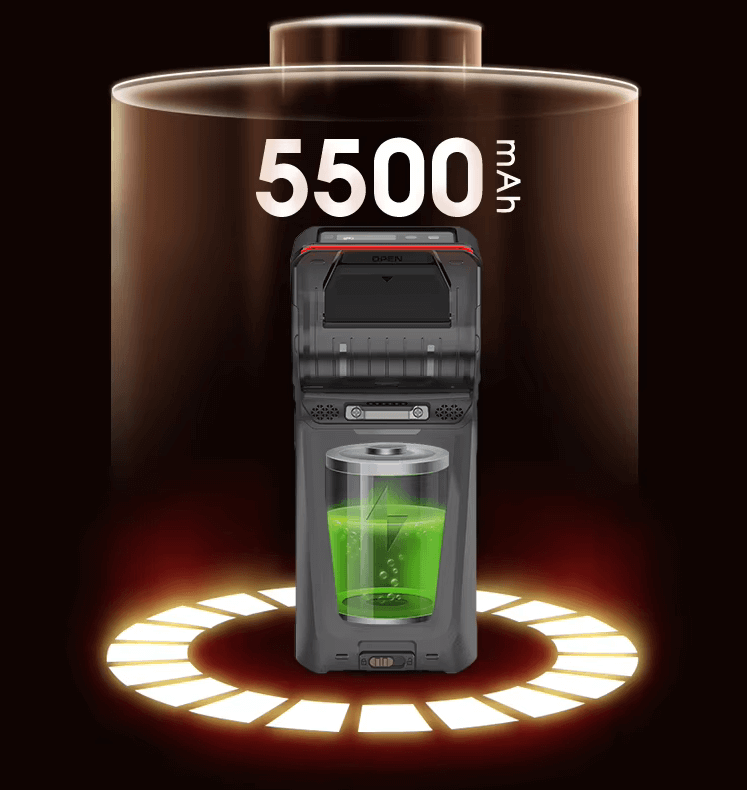

5500mAh Removable Battery

5500mAh large capacity lithium battery, low power consumption design, less power
consumption to meet your work needs all day.

Charging time: 3-4 hours

Working time: >12 hours

Standby Time: 350hours

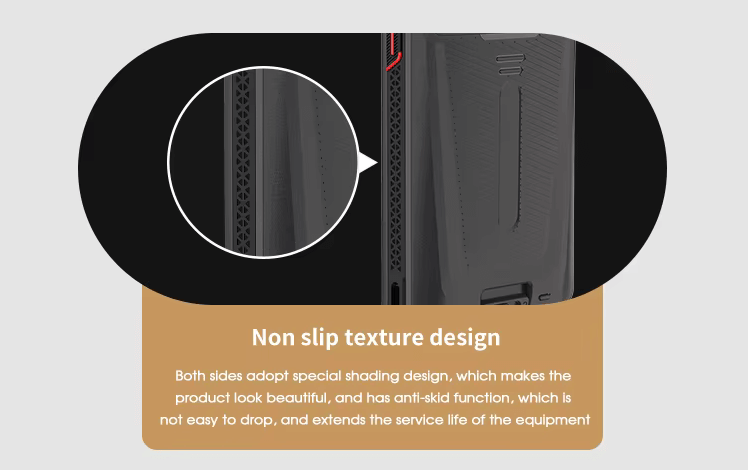

Non slip texture design

This non-slip texture design printing handheld terminal ensures secure
grip and operation in demanding environments. It combines reliable
barcode scanning with on-the-spot receipt and label printing, enhancing
productivity and safety.

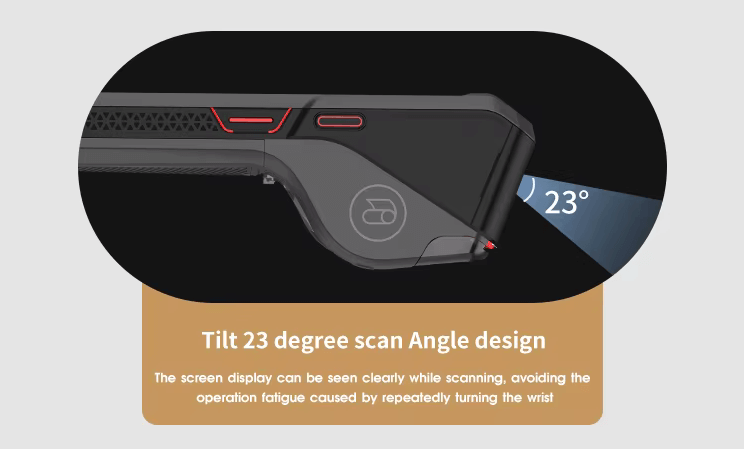

Tilt 23 degree scan Angle design

The Tilt 23-Degree Scan Angle design provides a more natural and
ergonomic scanning posture. This reduces operator wrist strain and
increases efficiency, making it ideal for high-volume scanning
environments

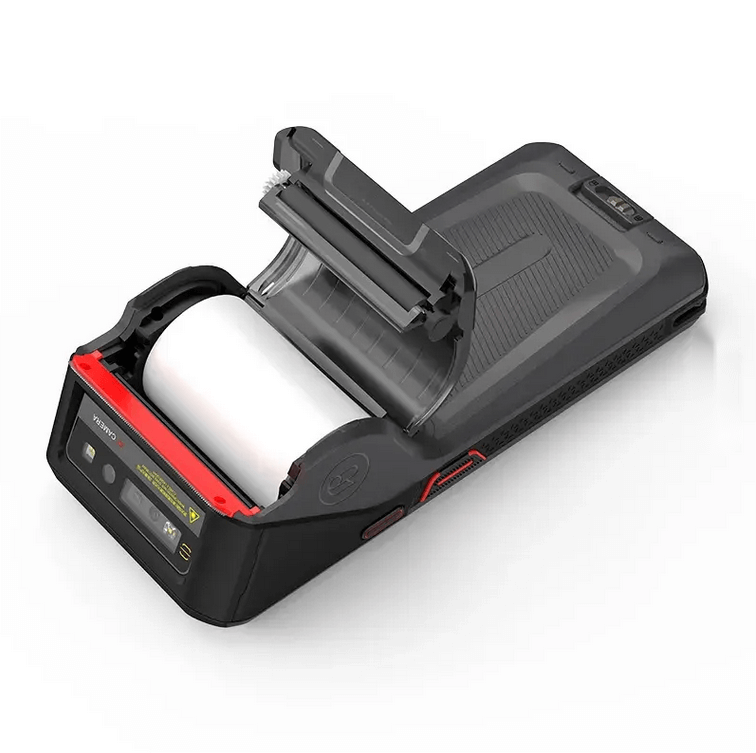

Build in 58MM Adjust Size Printer

Printing speed:70mm/s

Paper slot: 58mm

Paper diameter: 35mm

Print points:384 dots
