Leeshion

4inch 4G UHF RFID Handheld Mobile Computer LS-N41U

4inch 4G UHF RFID Handheld Mobile Computer LS-N41U

Regular price $254.90
Regular price $189.00 Sale price $254.90
Sale Sold out
Shipping calculated at checkout.

Ask for a quote for bulk order

Color
Network
Order Qty

The 4G UHF Handheld Terminal is a versatile and rugged communication device designed for professional use in demanding environments. Featuring 4G LTE connectivity and UHF radio capabilities, it ensures seamless voice and data transmission over both cellular and traditional radio networks. Built to IP67 standards, it withstands dust, water, and drops, making it ideal for industries like logistics, manufacturing, and public safety. With a long-lasting battery, crystal-clear audio, and GPS tracking, this terminal enhances team coordination and operational efficiency. Its user-friendly interface and durable design make it the perfect tool for reliable communication in the field.

PS: Price not including optional function, pls check with customer services about optiona price.

Product Specifications

Performance

Octa Core

CPU

MT6765X Octa core 64-bit 2.3GHz high-performance processor

RAM+ROM

2GB+16GB / 4GB+64GB optional

Expand memory

Micro SD(TF) Supports up to 128GB

System

Android 13.0

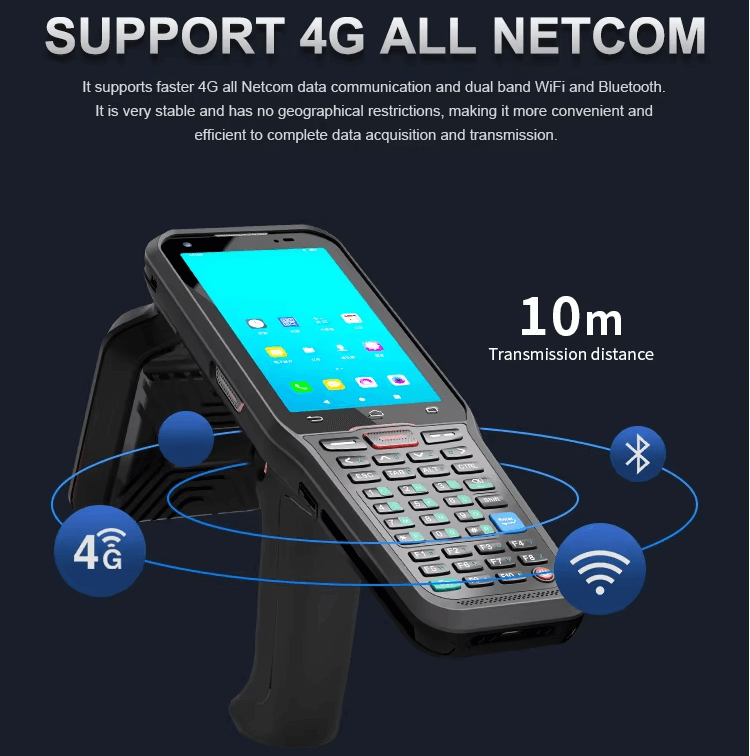

Data Communication

WLAN

Dual-band 2.4GHz / 5GHz, support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol

WWAN

2GGSM850/900/1800/1900MHz



3GWCDMA850/900/1900/2100MHz



4GFDD:B1/B3/B4/B7/B8/B12/B20

TDD:B38/B39/B40/B41

Bluetooth

Support Bluetooth 5.0+BLE

Transmission distance 5-10 meters

GNSS

Support Gps, Galileo, Glonass, Beidou

Physical Specifications

Dimensions

201.8mm×72mm×140mmIncluding the handle

Weight

750g

(Depends on device function configuration

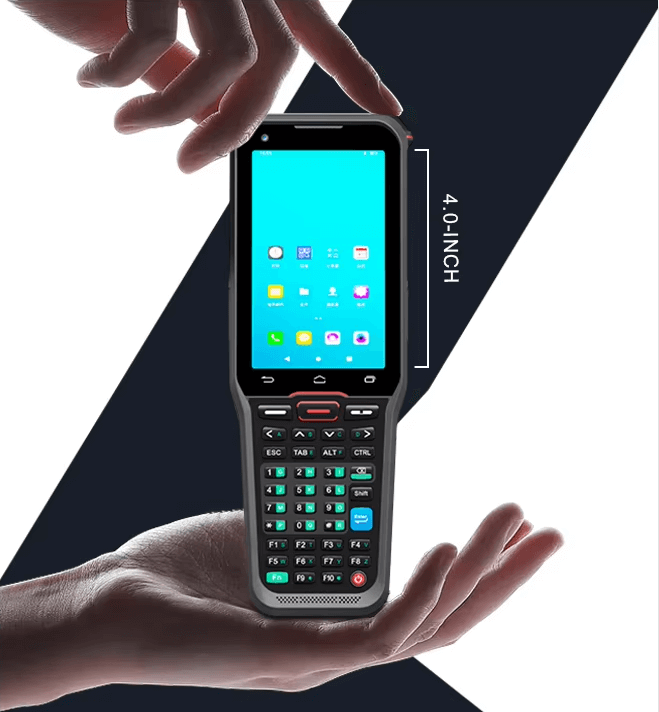

Display

4.0 "color display with resolution 480×800

Screen brightness

500cd/m2

TP

support multi-touch

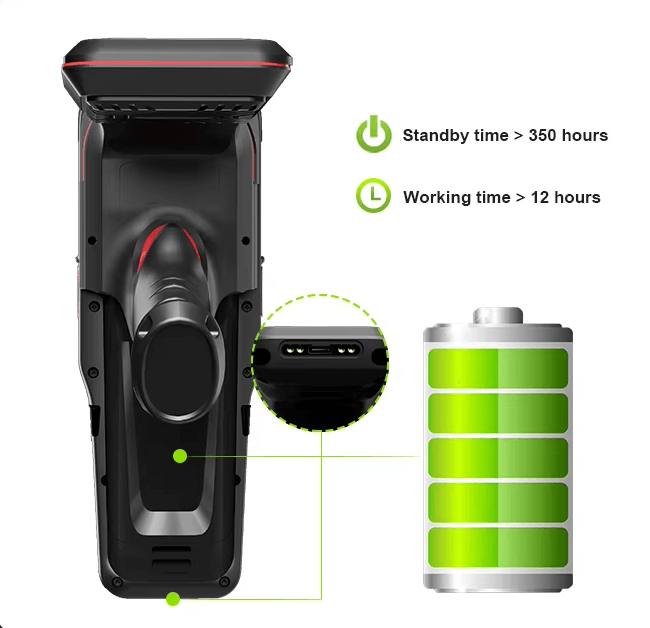

Battery capacity

Rechargeable polymer battery 7.6V 3750mAh(Equal to 3.8V 7500mAh),removable



Standby time >350 hours



Charging time 3H, using standard power

adapter and data cable

Expansion Card slot

NANO SIM card x2TF card x1Optional PSAM)、POGO Pinx1

Communication interface

Type-C 2.0 USB x 1, supporting OTG function

Speaker volume

87db (test distance 10cm)

Audio

Speaker (mono), Microphone, Receiver

Keypad

38 soft and hard rubber buttons, left button x1, right button x1,handle scan button x1

Sensors

Gravity sensor, light sensor, distance sensor, vibration motor

Data Collection

Barcode scanning

2D Scanning engine

Honeywell N5703  (Zebra SE5500 optional)

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc.

Postal Codes:USPS Planet, USPS Postnet, China Post, Korea Post, Australian Postal, Japan Postal, Dutch Postal (KIX), Royal Mail, Canadian Customs,etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, HanXi,etc.

Camera (Standard

Rear camera

800W pixel HD camera

Support auto focus, Flash, Anti-shake, Macro shooting

Front camera

200W pixel color camera

NFC (Optional)

Frequency

13.56MHz

Protocol

Support ISO14443A/B, 15693 agreement

Distance

2cm-5cm

UHF(Optional)

Engine

Impinj Indy R2000/ Impinj E710

Frequency(CHN)

920-925MHz

Frequency(USA)

902-928MHz

Frequency(EHR)

865-868MHzETSI EN 302 208

Frequency(Other)

Other multinational frequency standards (can be customized)

Protocol

EPC C1 GEN2/ISO18000-6C

Antenna

Circularly polarized antenna (+3dBi)

Distance

0-13m

Reading speed

>200 tags per second (circular polarization)

Language/Input Method

Input

English, Pinyin, Five strokes, Handwriting input, Support soft keypad

Language

Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese,Malaysian,etc.

User Environment

Operating temperature

-20 - 55

Storage temperature

-40 - 70

Environment humidity

5%RH--95%RH(no condensation)

Drop specification

6 sides supports 1.2 meters drops on the marble within the operating temperature

Rolling test

0.5m rolling for 6 sides, can still work steadily

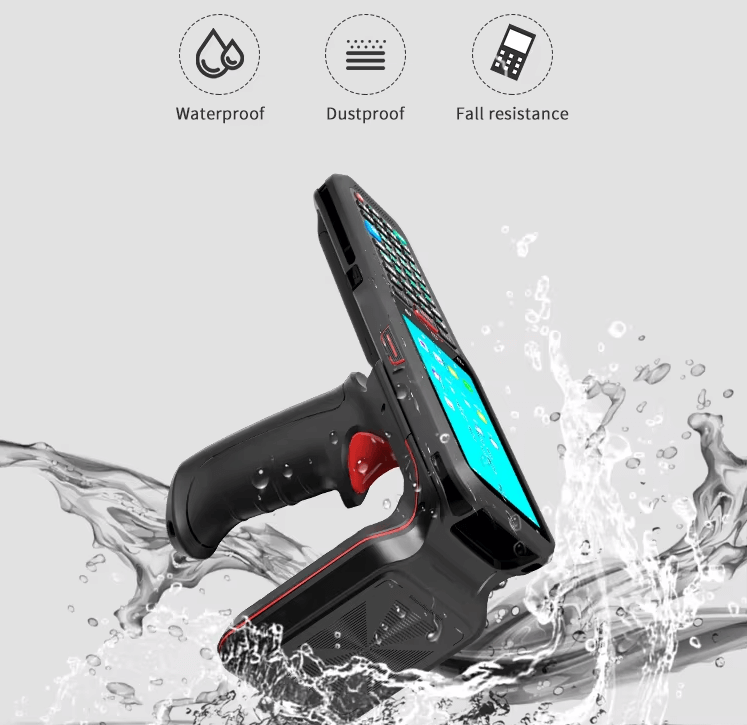

Sealing

IP65

Accessories

Standard

Adapter, Data cable, Protective film,

Instruction manual


OEM/ODM available for bulk orders
