Rugged UHF RFID Handheld for Warehouse Inventory – 20m Range LS-R501

Rugged UHF RFID Handheld for Warehouse Inventory – 20m Range LS-R501

The RFID Handheld Terminal is a cutting-edge device designed for efficient asset tracking and inventory management. Equipped with advanced RFID technology, it enables fast and accurate scanning of RFID tags, even in challenging environments. To unlock its full potential, simply install the dedicated app, which provides a user-friendly interface for scanning, data collection, and real-time updates. This terminal is perfect for industries like logistics, retail, and manufacturing, where quick and reliable data capture is essential.

Model Name: LS-R501
Screen size: 5.5 Inch
Chip： MTK6765X
1D/2D Barcode scanner: Honeywell N6703 N5703,N6602-W2(Optional)
GPS: Support GPS+Glonass+Galileo
Storage: 4GB+64GB
OS: Android 13
Battery: Rechargeable polymer battery 7.6V 4000mAh,(Equal to 3.8V 8000mAh) ,removable
NFC: 13.56MHz NFC(optional)
Camera: 2MP+13MP
Network: 2G/3G/4G WIFI Network
UHF：Nation Rfid N611/Impinj E710（Either-or）
Frequency：
(CHN) ： 920-925MHz
Frequency(USA)： 902-928MHz
Frequency(EHR)： 865-868MHz（ETSI EN 302 208）
Frequency(Other)： Other multinational frequency standards (can be
customized)
Protocol： EPC C1 GEN2/ISO18000-6C
Antenna： Circularly polarized antenna (4.65dBi)
Distance： 0-20m
Reading speed： >500 tags per second (circular polarization)
Interface: Type C
Certificate： CE
Dimension: 179mm×74.5mm×150mm（Including the handle）
Drop specification:
6 sides supports 1.2 meters drops on the marble
within the operating temperature
OEM/ODM available for bulk orders


Packinglist
Standard LS-R501 Device *1
USB cable *1
Protective film
 *1
User Manual*1
Package Box*1

Get A Quote

View full details
Leeshion industry UHF RFID Handheld Mobile Computer LS-R501 with Impinj E710

1D/2D Barcode Scanner (Optional)

Scanner engine optional: Honeywell N6703/ N5703/N6602-W2

The international professional scanning engine can intelligently identify the most challenging barcodes, including poorly printed, damaged, crinkled, distorted and stained barcodes.

Leeshion industry UHF RFID Handheld Mobile Computer LS-R501 with Impinj E710

NFC (Optional)

ThisNFC-enabled PDAcombines seamless contactless communication with rugged mobility, perfect for payment processing, access control, and asset tracking. Its fast data transfer and secure authentication enhance efficiency in retail, logistics, and field operations. A smart solution for modern workflows.

Leeshion industry UHF RFID Handheld Mobile Computer LS-R501 with Impinj E710

Rapid RFID Tags Read Rate - 500+ Tags/Sec

- Equipped with a 4dBi high-sensitivity RFID antenna, its reading range and speed.
- It can read tags 20m away, and the maximum speed can reach 500 tags/sec.

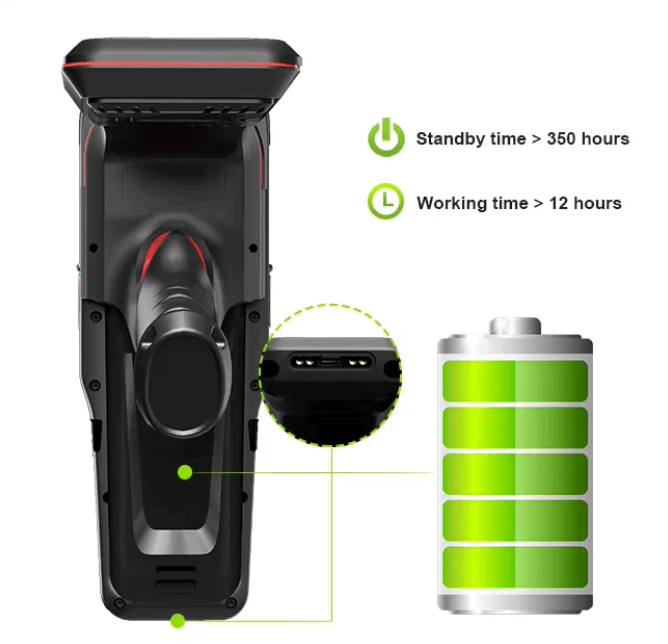

Comfortable One-handed Use

-Removable polymer battery 7.6V 4000mAh (Equal to 3.8V 8000mAh)

- Standby time >350 hours

-Charging time ＜3H, using standard power adapter and data cable

Unmatched Comfort with Ergonomical Design

The ergonomic design relieves hand fatigue caused by long-time holding, helping you stay focused and efficient.
