Product Specifications
|
|
Performance
|
|
Octa Core
|
|
CPU
|
MT6765X Octa core 64-bit 2.3GHz high-performance processor
|
|
RAM+ROM
|
2GB+16GB / 4GB+64GB optional
|
|
Expand memory
|
Micro SD(TF) Supports up to 128GB
|
|
System
|
Android 13.0
|
|
Data Communication
|
|
WLAN
|
Dual-band 2.4GHz / 5GHz, support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol
|
|
WWAN
|
2G：GSM（850/900/1800/1900MHz）
|
|
|
3G：WCDMA（850/900/1900/2100MHz）
|
|
|
4G：FDD:B1/B3/B4/B7/B8/B12/B20
TDD:B38/B39/B40/B41
|
|
Bluetooth
|
Support Bluetooth 5.0+BLE
Transmission distance 5-10 meters
|
|
GNSS
|
Support Gps, Galileo, Glonass, Beidou
|
|
Physical Specifications
|
|
Dimensions
|
201.8mm×72mm×140mm（Including the handle）
|
|
Weight
|
＜750g
(Depends on device function configuration）
|
|
Display
|
4.0 "color display with resolution 480×800
|
|
Screen brightness
|
＞500cd/m2
|
|
TP
|
support multi-touch
|
|
Battery capacity
|
Rechargeable polymer battery 7.6V 3750mAh(Equal to 3.8V 7500mAh),removable
|
|
|
Standby time >350 hours
|
|
|
Charging time ＜3H, using standard power
adapter and data cable
|
|
Expansion Card slot
|
NANO SIM card x2、TF card x1（Optional PSAM）、POGO Pinx1
|
|
Communication interface
|
Type-C 2.0 USB x 1, supporting OTG function
|
|
Speaker volume
|
＞87db (test distance 10cm)
|
|
Audio
|
Speaker (mono), Microphone, Receiver
|
|
Keypad
|
38 soft and hard rubber buttons, left button x1, right button x1,handle scan button x1
|
|
Sensors
|
Gravity sensor, light sensor, distance sensor, vibration motor
|
|
Data Collection
|
|
Barcode scanning
|
|
2D Scanning engine
|
Honeywell N5703 (Zebra SE5500 optional)
|
|
1D Symbologies
|
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc.
Postal Codes:USPS Planet, USPS Postnet, China Post, Korea Post, Australian Postal, Japan Postal, Dutch Postal (KIX), Royal Mail, Canadian Customs,etc.
|
|
2D Symbologies
|
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, HanXi,etc.
|
|
Camera (Standard）
|
|
Rear camera
|
800W pixel HD camera
Support auto focus, Flash, Anti-shake, Macro shooting
|
|
Front camera
|
200W pixel color camera
|
|
NFC (Optional)
|
|
Frequency
|
13.56MHz
|
|
Protocol
|
Support ISO14443A/B, 15693 agreement
|
|
Distance
|
2cm-5cm
|
|

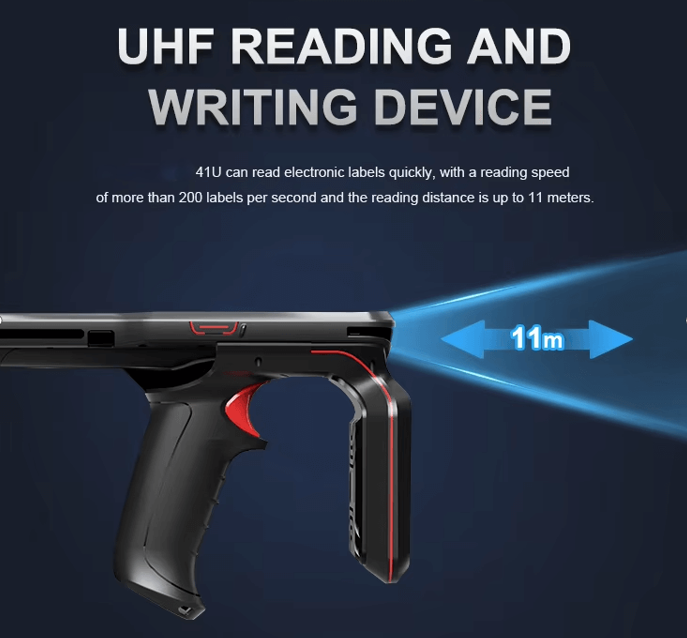

UHF(Optional)
|
|
Engine
|
Impinj Indy R2000/ Impinj E710
|
|
Frequency(CHN)
|
920-925MHz
|
|
Frequency(USA)
|
902-928MHz
|
|
Frequency(EHR)
|
865-868MHz（ETSI EN 302 208）
|
|
Frequency(Other)
|
Other multinational frequency standards (can be customized)
|
|
Protocol
|
EPC C1 GEN2/ISO18000-6C
|
|
Antenna
|
Circularly polarized antenna (+3dBi)
|
|
Distance
|
0-13m
|
|
Reading speed
|
>200 tags per second (circular polarization)
|
|
Language/Input Method
|
|
Input
|
English, Pinyin, Five strokes, Handwriting input, Support soft keypad
|
|
Language
|
Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese,Malaysian,etc.
|
|
User Environment
|
|
Operating temperature
|
-20℃ - 55℃
|
|
Storage temperature
|
-40℃ - 70℃
|
|
Environment humidity
|
5%RH--95%RH(no condensation)
|
|
Drop specification
|
6 sides supports 1.2 meters drops on the marble within the operating temperature
|
|
Rolling test
|
0.5m rolling for 6 sides, can still work steadily
|
|
Sealing
|
IP65
|
|
Accessories
|
|
Standard
|
Adapter, Data cable, Protective film,
Instruction manual
|
