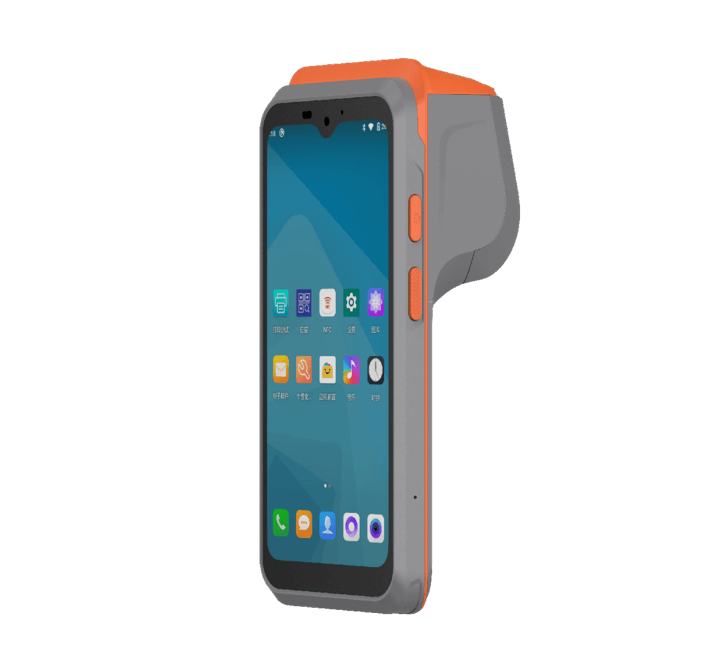

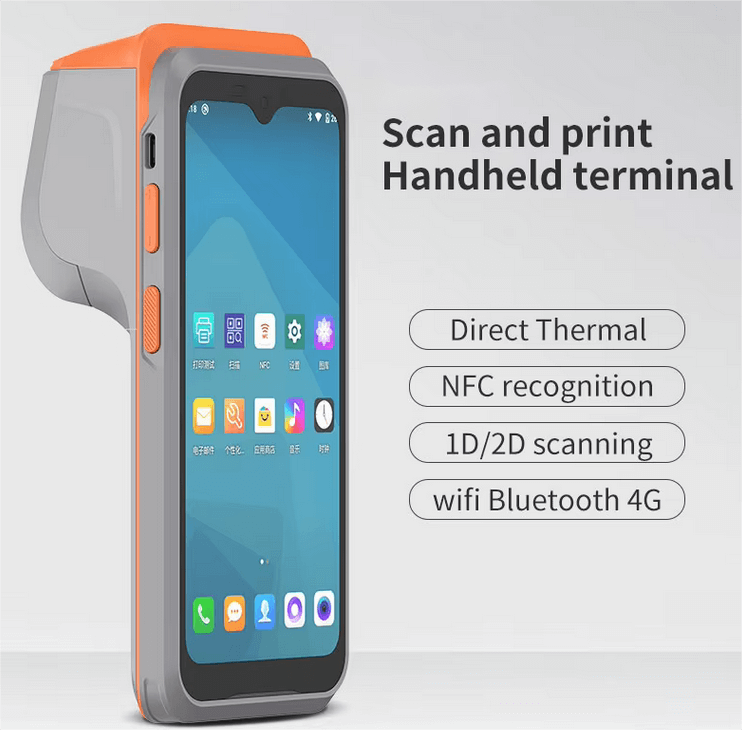

6.2-inch Printing Handheld Terminal LS-H62

6.2-inch Printing Handheld Terminal LS-H62

The 6.2-inch Printing Handheld Terminal offers a large, high-resolution display for optimal data viewing paired with a built-in printer for on-demand receipts and labels. This all-in-one device boosts productivity in logistics, warehousing, and retail.

Model: LS-H62
Processor type: Core-A53 Quad-core 64bit 2.0Ghz
Screen size: 6.217" IPS color display, 720*1520 resolution
Software development kit (sdk): Yes
Rare Camera: 8MP, HD camera, support auto foucas,
OS: Android 10/Android 13
Printer type: Thermal/ Label printing
Memory: 2GB+16GB (Optional 4+64G)
Battery Capacity: 7.6V-2500mAh (3.8v 5000mAh)
Network: 4G/3G/2G
Interface: Type C
WiFi 5: 802.11 ac/a/b/g/n
BT: BT5.0
NFC: Standard, 2-5cm
Scanner Engine: (optional) TD13
Card Slot: SIM *1+PSAM*1
Dimensions: 214.4x 84.2 x 16.7mm
Certificates: CE/ROHS
Weight:<500g (Including batterry)

Get A Quote

Contact form

View full details

Cortex -A53 Processor

The Cortex-A53 octa-core processor, clocked at 2.0GHz, delivers powerful performance with optimized power efficiency, making it ideal for industrial printers. With advanced connectivity and multi-mode network support, it enhances productivity in logistics, warehousing, and mobile work scenarios.

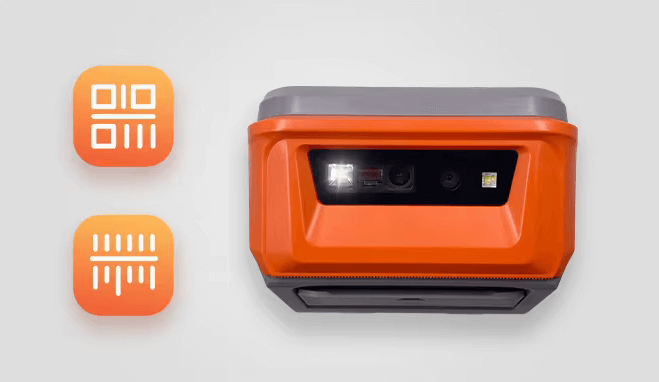

1D/2D Barcode Scanner

This versatile printing handheld terminal features an optional
integrated scanner, enabling both on-the-spot label printing and
efficient barcode capture. It's the ultimate all-in-one solution for
inventory and logistics tasks

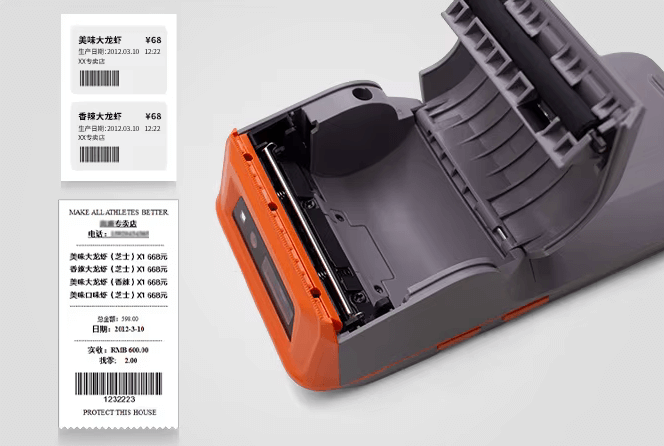

58mm Direct Thermal Printer

Support ticket printing and label printing,Paper roll width 58mm, diameter 40mm

Printing speed:70mm/s

Paper slot: 58mm

Paper diameter: 40mm

Print points:384 dots

5000mAh Battery

5000mAh large capacity lithium battery, low power consumption design, less power
consumption to meet your work needs all day.

Charging time: 2-3 hours

Working time: >10 hours

Standby Time: 350hours

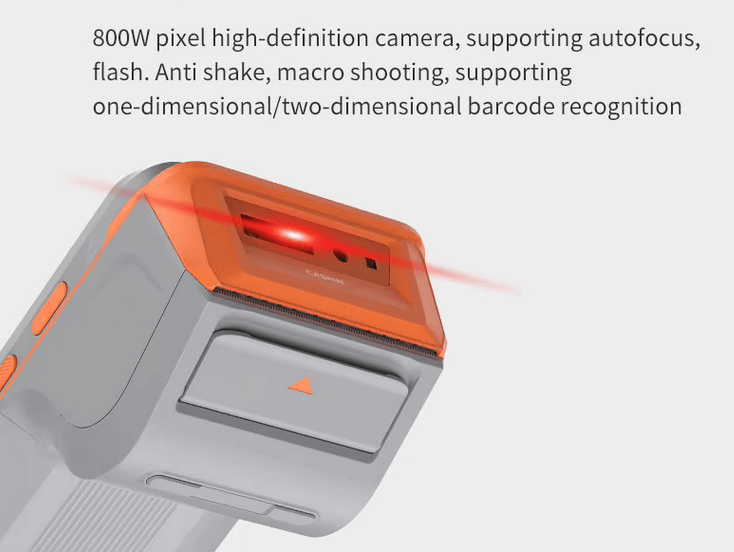

8MP Rare camera

This advanced printing handheld terminal features an 8MP rear camera for
capturing high-resolution images and reading damaged barcodes. It
enables on-the-spot printing and detailed documentation, perfect for
proof-of-delivery and asset inspection.

NFC

With NFC recognition enables quick, contactless data exchange and
authentication. It seamlessly prints labels and receipts while reading
NFC tags, streamlining asset tracking and secure transactions
