5.5inch 5G Rugged Mobile Computer LS-F503
5.5inch 5G Rugged Mobile Computer LS-F503
Ask for a quote for bulk order
Contact form
Built for tough environments, this ultra-durable handheld terminal combines 5G connectivity, industrial-grade durability (IP66 ), and powerful processing for seamless field operations. Scan barcodes, capture high-res images, and transmit data in real time—rain, dust, or drops won’t stop it. Perfect for logistics, warehousing, field service, and manufacturing.
✅ Blazing-fast 5G for instant cloud sync
✅ Long battery life for all-day use
✅ Crystal-clear display (sunlight-readable)
Upgrade your workforce’s efficiency，OEM/ODM available for bulk orders
|
Product Specifications |
|
|
Performance |
|
|
Octa Core |
|
|
CPU |
MT6833 Octa-core 64-bit 2.2GHz high-performance processor |
|
RAM+ROM |
4GB+64GB/6GB+128GB |
|
Expand memory |
Micro SD(TF) Supports up to 256GB |
|
System |
Android13.0 |
|
Data Communication |
|
|
WLAN |
Dual-band 2.4GHz / 5GHz, Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol |
|
WWAN |
GSM: B2/3/5/8 |
|
WCDMA: B1/2/5/8 |
|
|
CDMA: BC0 |
|
|
TDD: B34/39/38/40/41/42/43/48 FDD: B1/2/3/5/7/8/9/19 |
|
|
5G: N1/N3/N28/N41/N77/N78/N79 |
|
|
Bluetooth |
Support Bluetooth5.0+BLE，transmission distance 5-10 meters |
|
GNSS |
Support GPS, Galileo, Glonass, Beidou |
|
Physical Specifications |
|
|
Dimensions |
160.5mm x 70.6mm x 14.9 (thinnest) mm |
|
Weight |
＜300g (Depends on device function configuration） |
|
Display |
5.5" IPS color display,resolution 720x1440 |
|
Screen brightness |
＞500cd/m2 |
|
TP |
Support multi-touch |
|
Battery capacity |
Rechargeable polymer battery (3.85V 4200mAh) |
|
Standby time >350 hours |
|
|
Charging time < 3 hours, use standard power adapter and data cable |
|
|
Expansion Card slot |
Standard: NANO SIM×2, TF+NANO SIM or Single NANO SIM (Optional) |
|
Communication interface |
Type-C USB x 1, OTG |
|
Speaker volume |
＞94db (test distance 10cm) |
|
Audio |
Speaker (mono), Microphone x 2 , Receiver |
|
Keypad |
Power button, Volume +/- button,Scan button × 2 |
|
Sensors |
|
|
|
|
|
Data Collection |
|
|

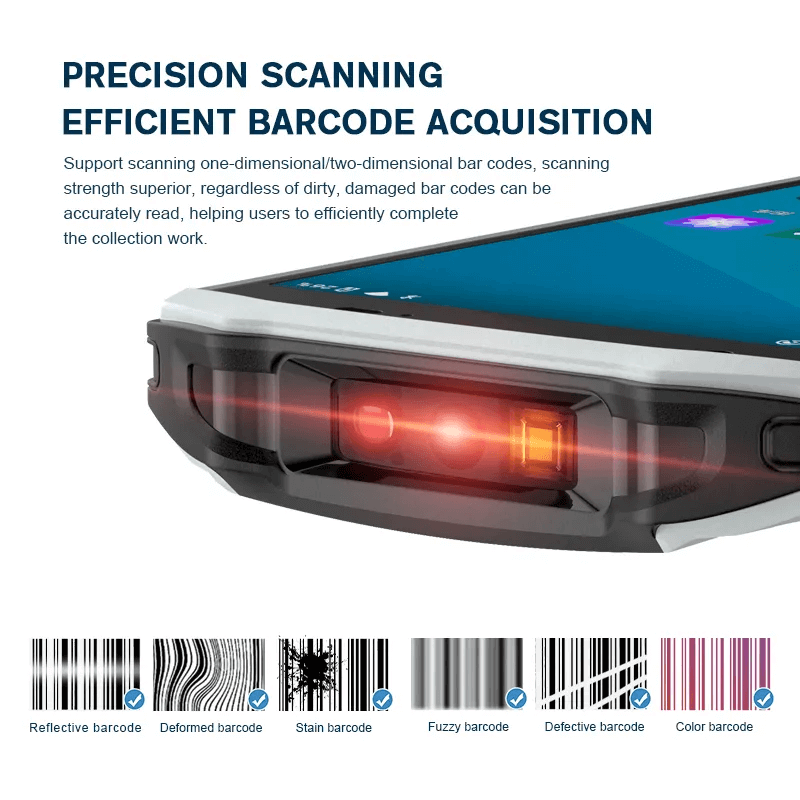

Barcode Scanning |
|
|
2D Scanning engine |
Honeywell N5703 |
|
1D Symbologies |
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc. Postal Codes:USPS Planet, USPS Postnet, China Post, Korea Post, Australian Postal, Japan Postal, Dutch Postal (KIX), Royal Mail, Canadian Customs,etc. |
|
2D Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, HanXi,etc. |
|
Camera（Standard） |
|
|
Rear camera |
13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting |
|
Front camera |
2MP color camera,(5MP Optional) |
|

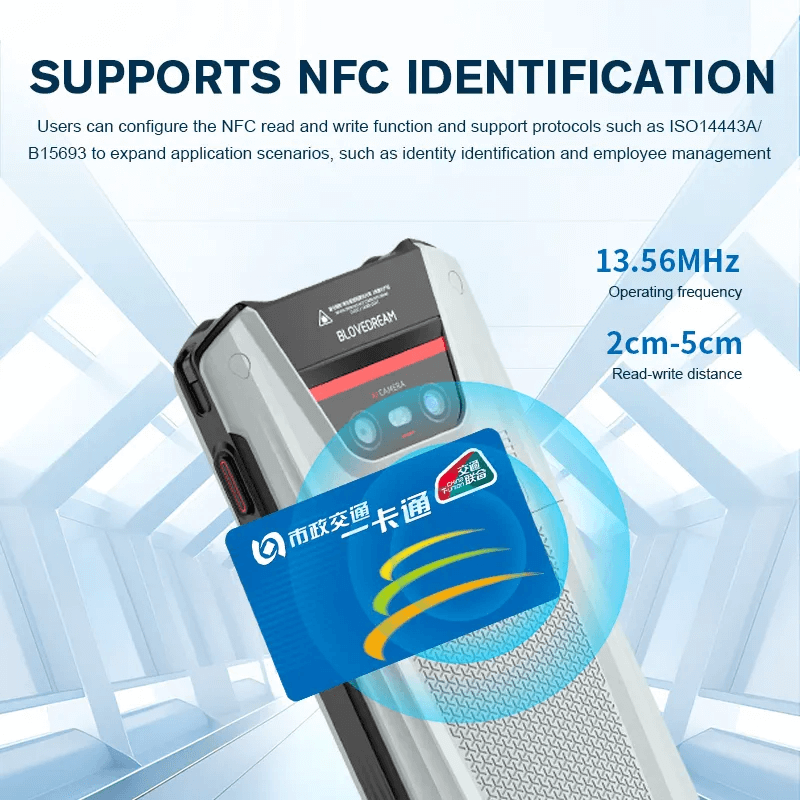

NFC（Optional） |
|
|
Frequency |
13.56MHz |
|
Protocol |
Support ISO14443A/B, 15693 agreement |
|
Distance |
2cm-5cm |
|
Language/Input Method |
|
|
Input |
English, Pinyin, Five strokes, Handwriting input, Support soft keypad |
|
Language |
Chinese, English, Korean, Japanese, Malaysian,etc. |
|
User Environment |
|
|
Operating temperature |
-20℃ - 55℃ |
|
Storage temperature |
-40℃ - 70℃ |
|
Environment humidity |
5%RH--95%RH(no condensation) |
|

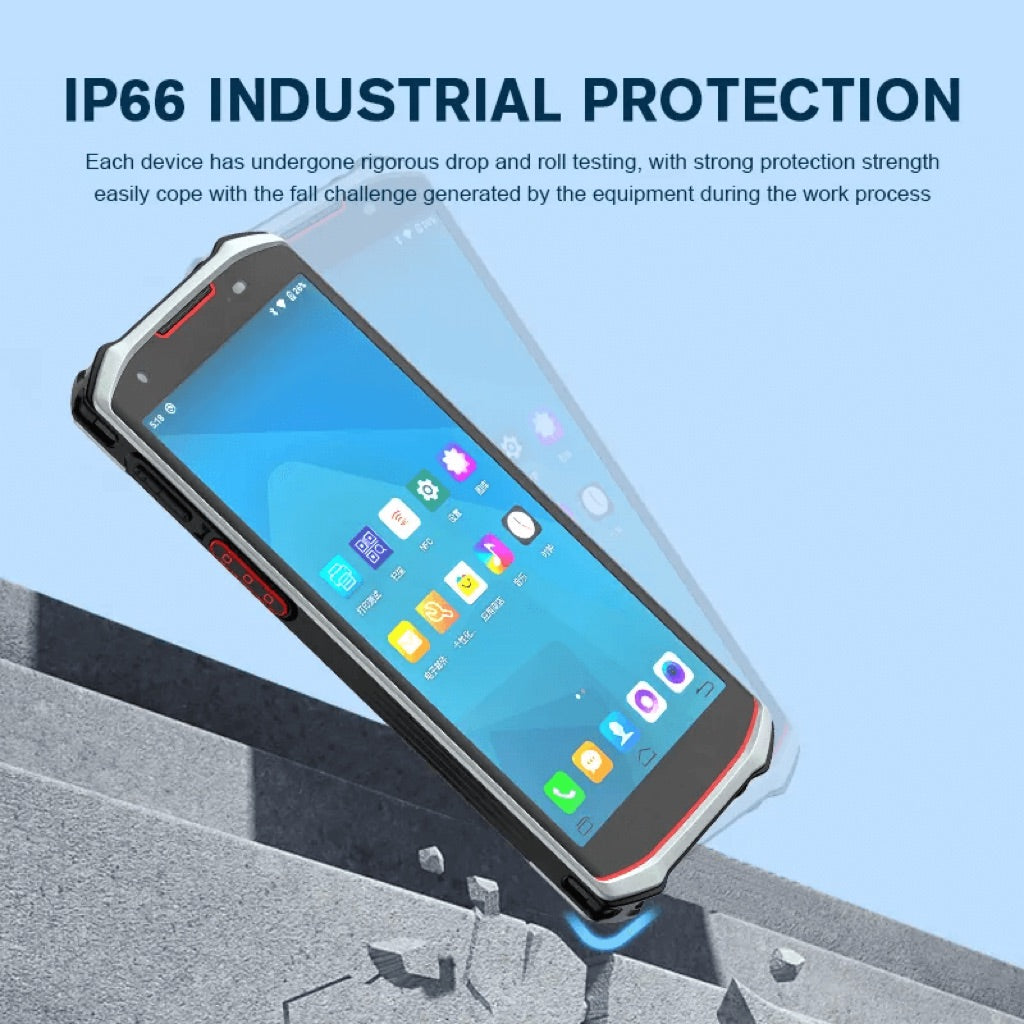

Drop specification |
temperature range, 6 sides can withstand a height of 1.5 meters,falling to the marble. |
|
Rolling test |
0.5m rolling for 6 sides, can still work steadily |
|
Sealing |
IP66 |
|
Accessories |
|
|
Standard |
Adapter, Data cable, Protective film, Instruction manual |
|
|
|
