Wired 1D/2D Barcode Scanners LS-DLX209

Wired 1D/2D Barcode Scanners LS-DLX209

HK$55.00 HKD
HK$55.00 HKD
Sale Sold out
Shipping calculated at checkout.

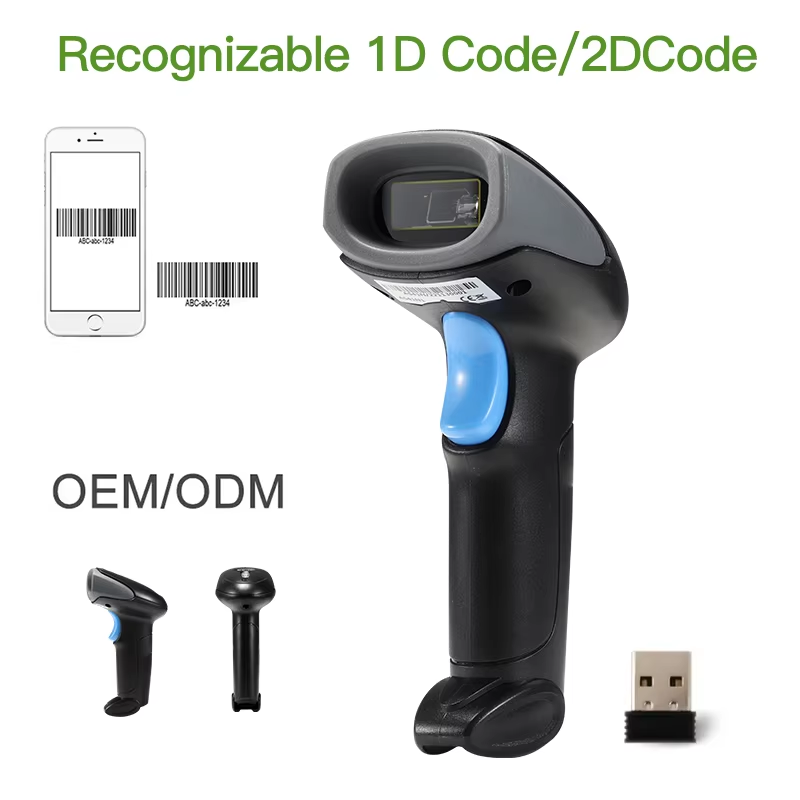

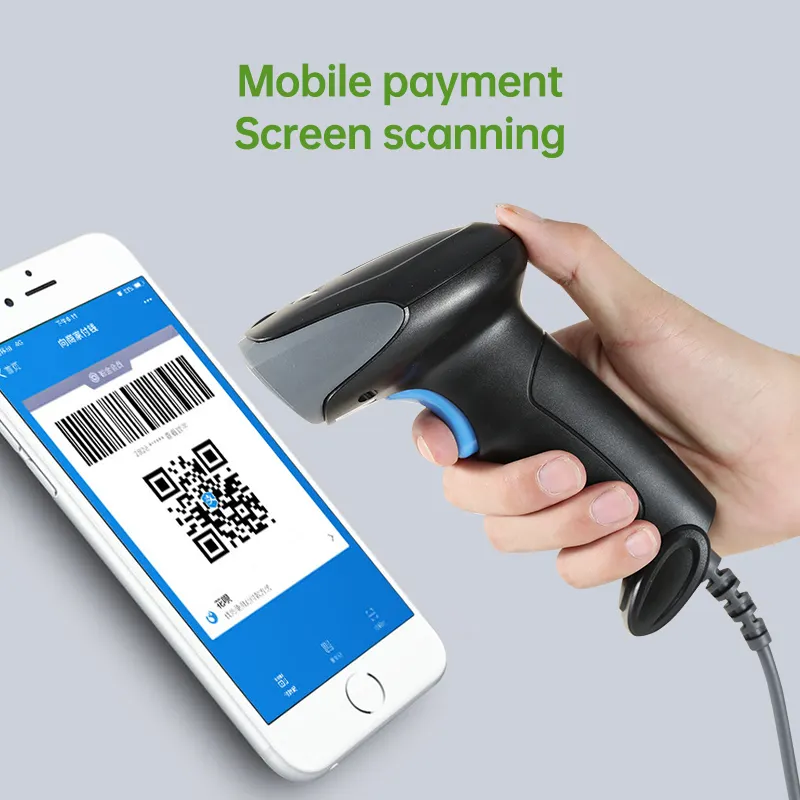

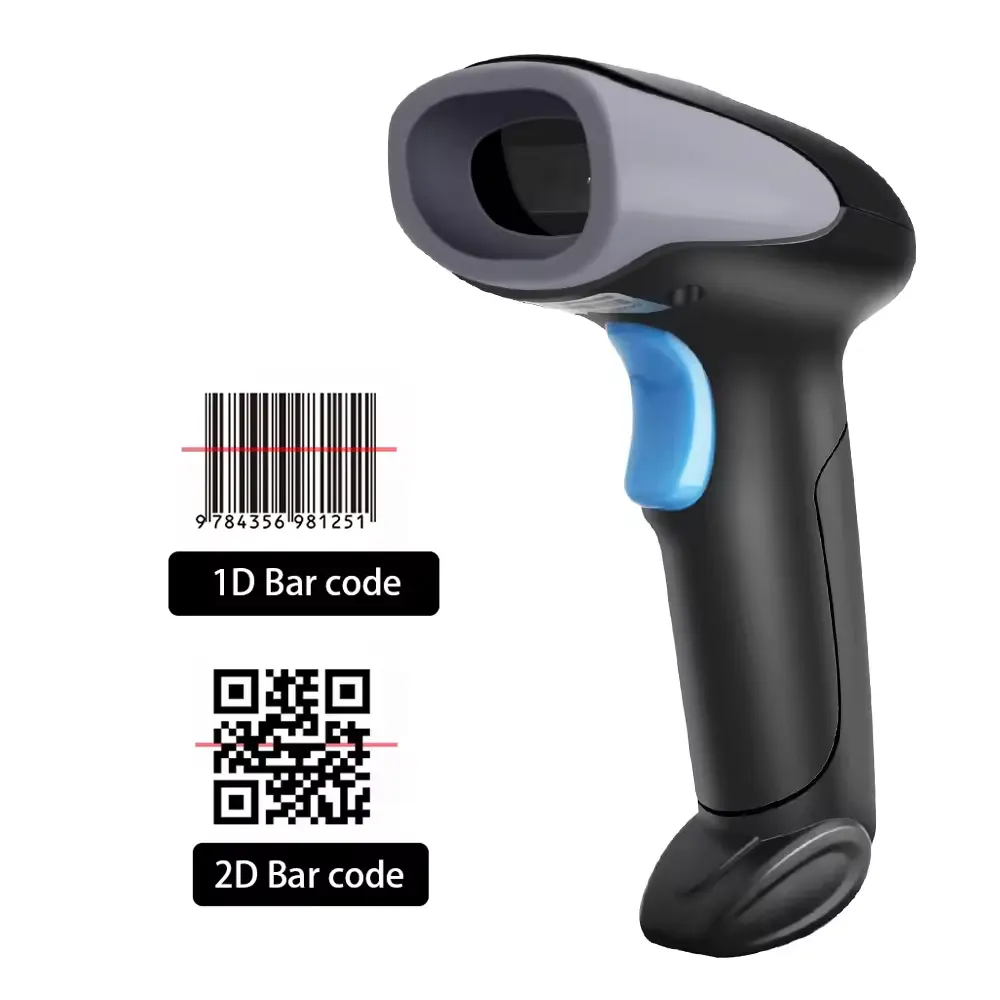

The 1D/2D Auto Barcode Scanner Gun LS-DLX209 is a versatile and efficient tool designed for seamless barcode scanning in various environments. Equipped with advanced auto-sensing technology, it effortlessly reads both 1D and 2D barcodes, ensuring high accuracy and speed.
Its ergonomic design provides comfort during extended use, while the durable construction guarantees long-lasting performance. Ideal for retail, warehousing, and logistics, this scanner gun enhances productivity and streamlines operations. With easy integration into existing systems, itā€™s the perfect solution for businesses seeking reliable and efficient barcode scanning capabilities.
Model
LS-DLX209
Item
Wired 2D Barcode Scanner
Physical Parameter
Material
ABS+PC
Power Supply
DC 5V Ā±5%
Power Consumption
815mW(working);480mW(standby);1105mW(maximum)[Average power consumption]
Weight
176gĀ±5g(Without Cable)
Size
L * W * H:163mm* 68mm* 80mm
Color
Black
Performance Parameter
Interface

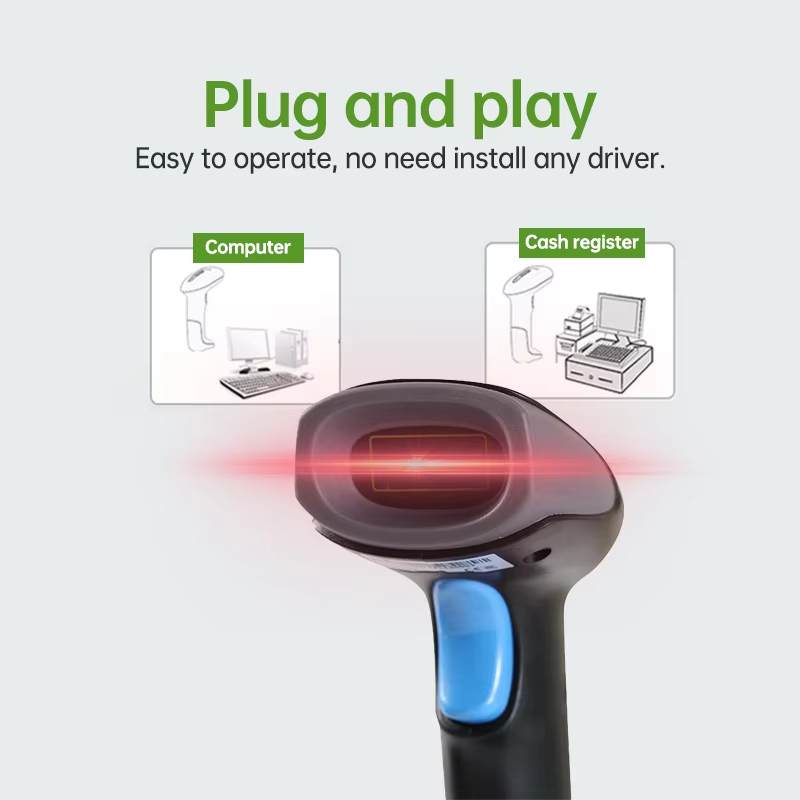

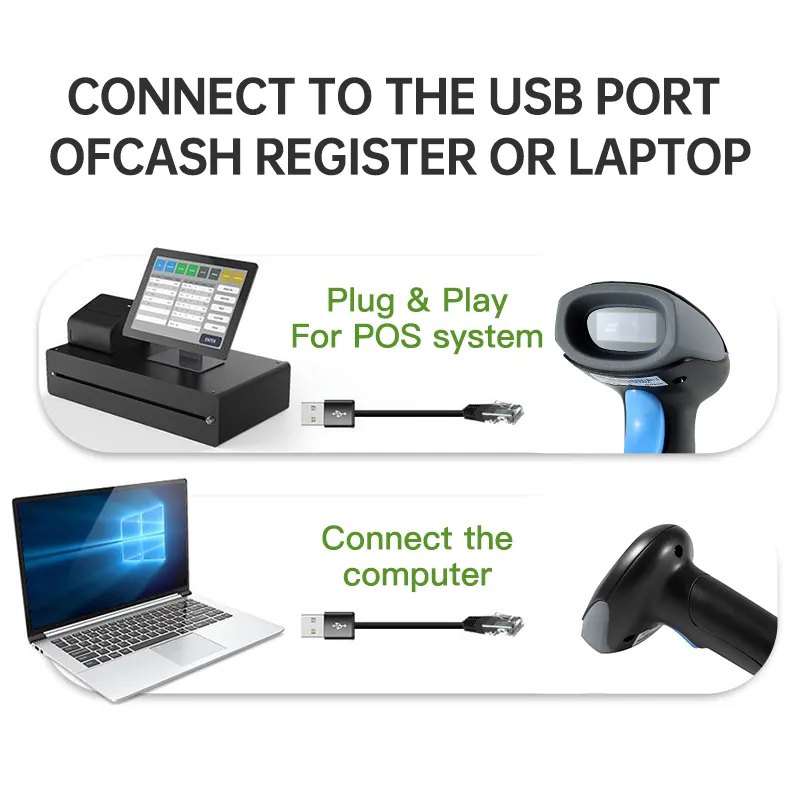

USB;(RS232 can be customized)

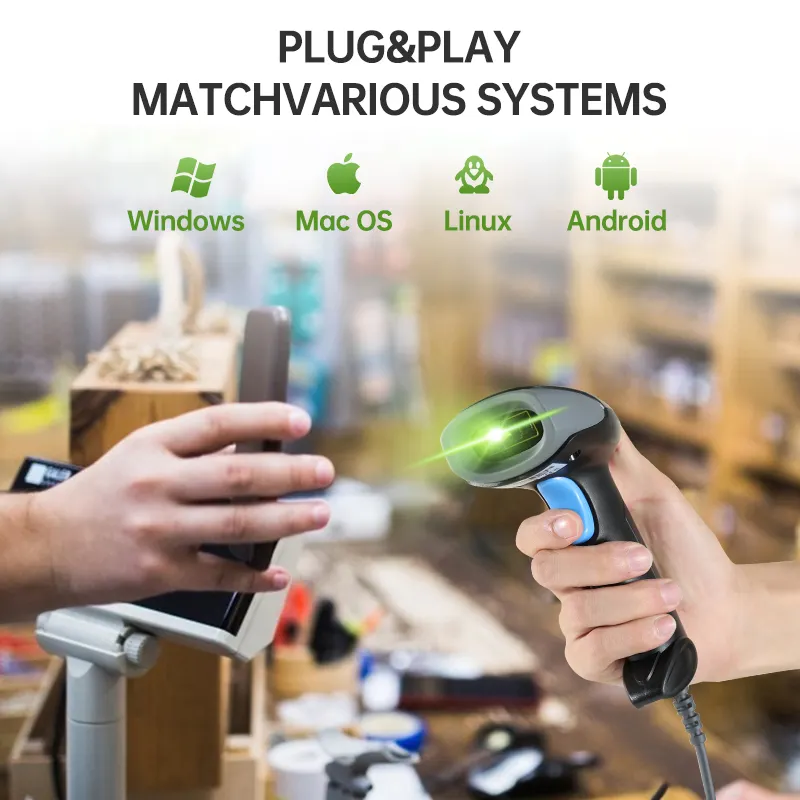

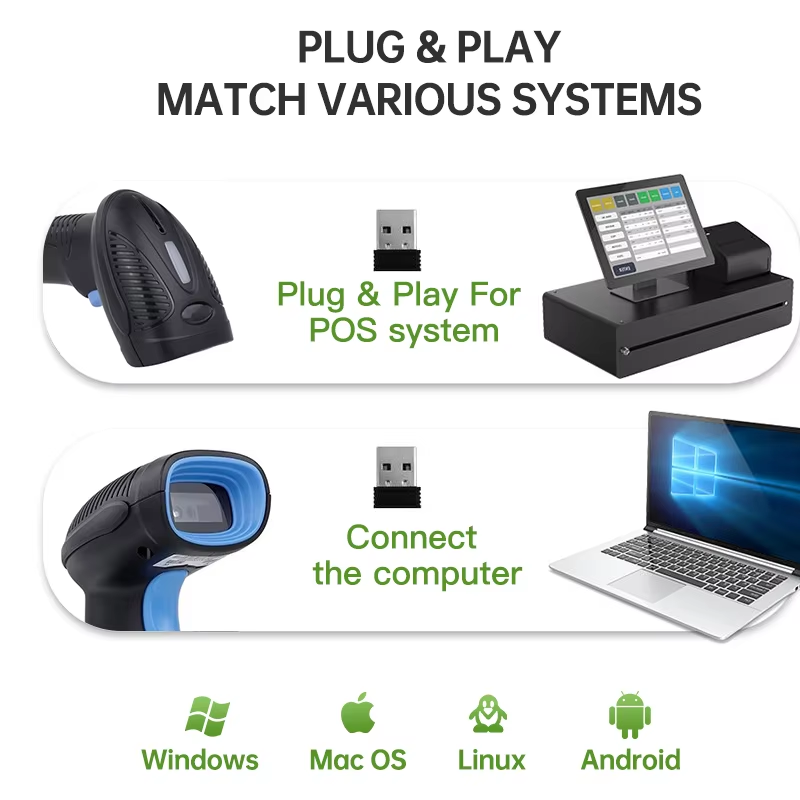

System Supported
Linux,Android,Windows XP,7,8,10,11,MAC
Language Supported
American English;Belgium;Finland;France;Germany;Italy;Sweden;United
Kingdom;Denmark;Norway;Spain;Portugal;TurkeyF;TurkeyQ;Japan;Russia [Support virtual keyboard]

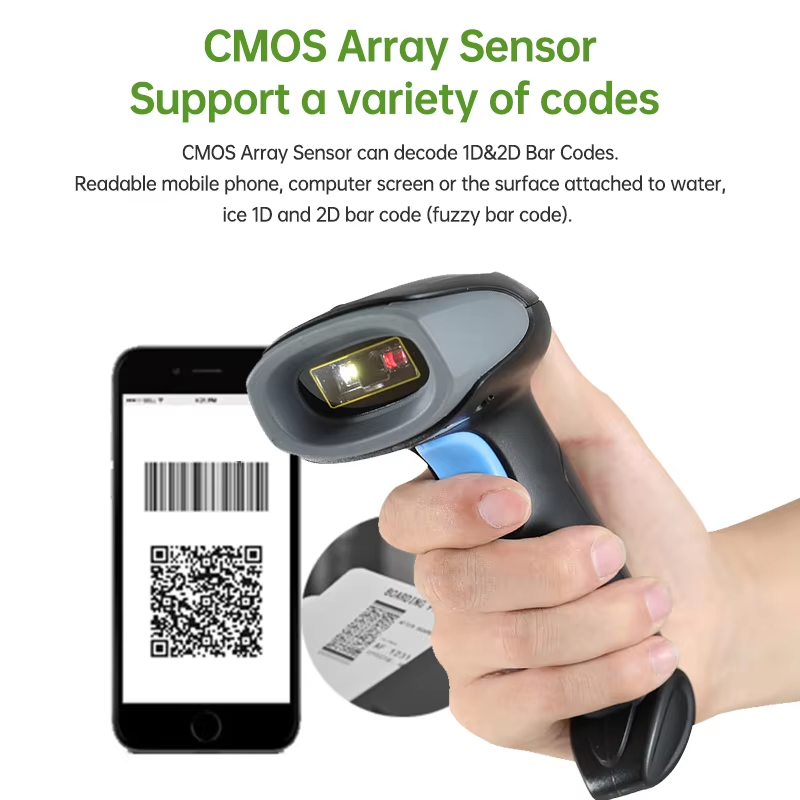

Sensor
sensor 640Ɨ480 CMOS
Light Source
White light LED illumination + Green light LED Focus
Processor
32-bit ARM MCU + BGA
Motion tolerance
QR: 25cm/sec

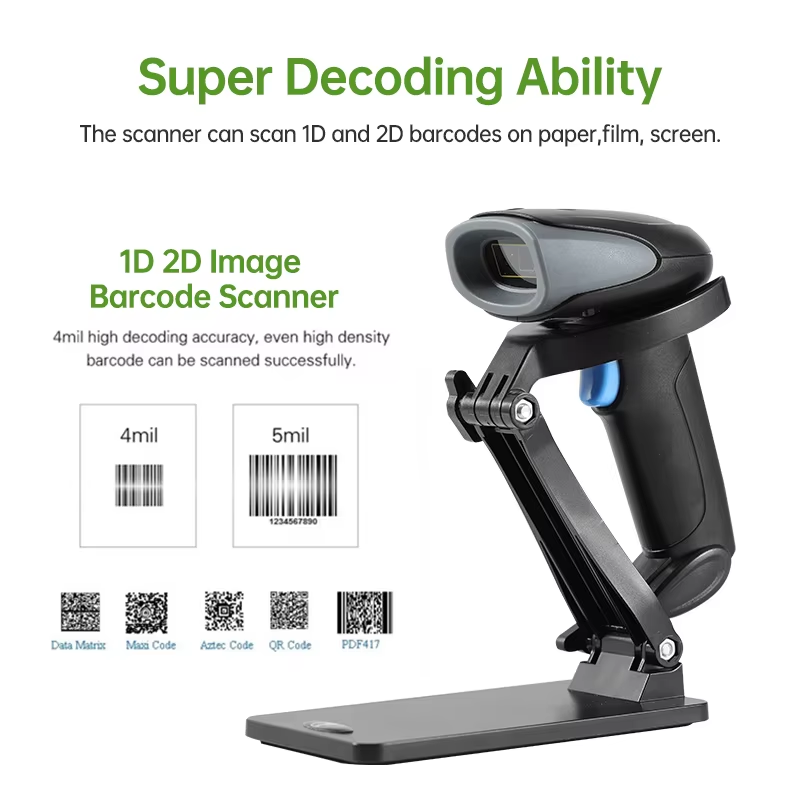

Resolution
ā‰„4mil
Bit error rate
1/5000000
Reading Mode
Trigger Mode
Manual;Auto-Sensing;Continuous scanning
Prompt Mode
Buzzer, Indicator Light(LED)
Print Contrast
25%

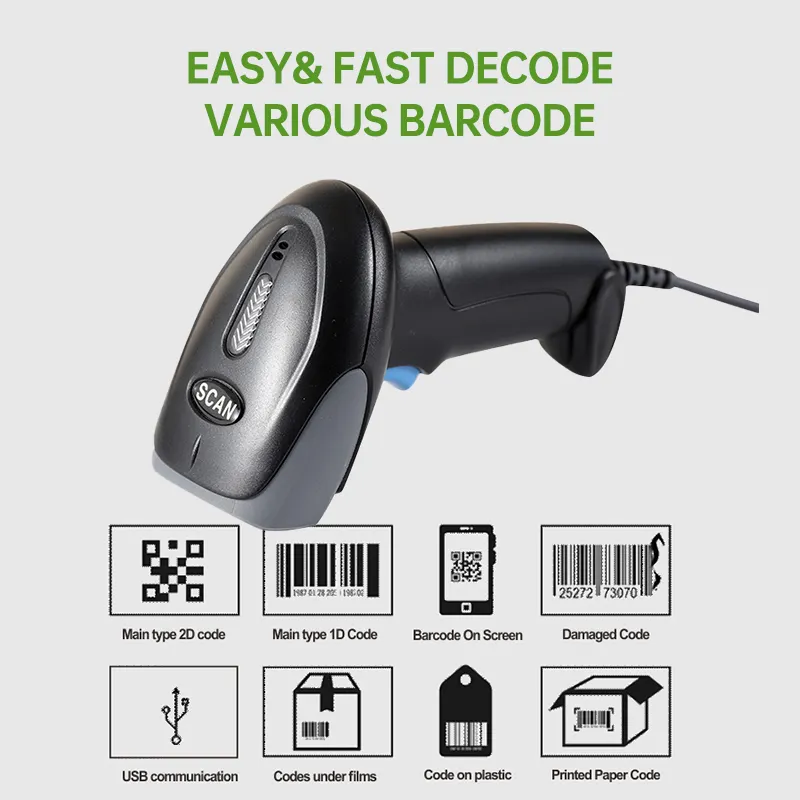

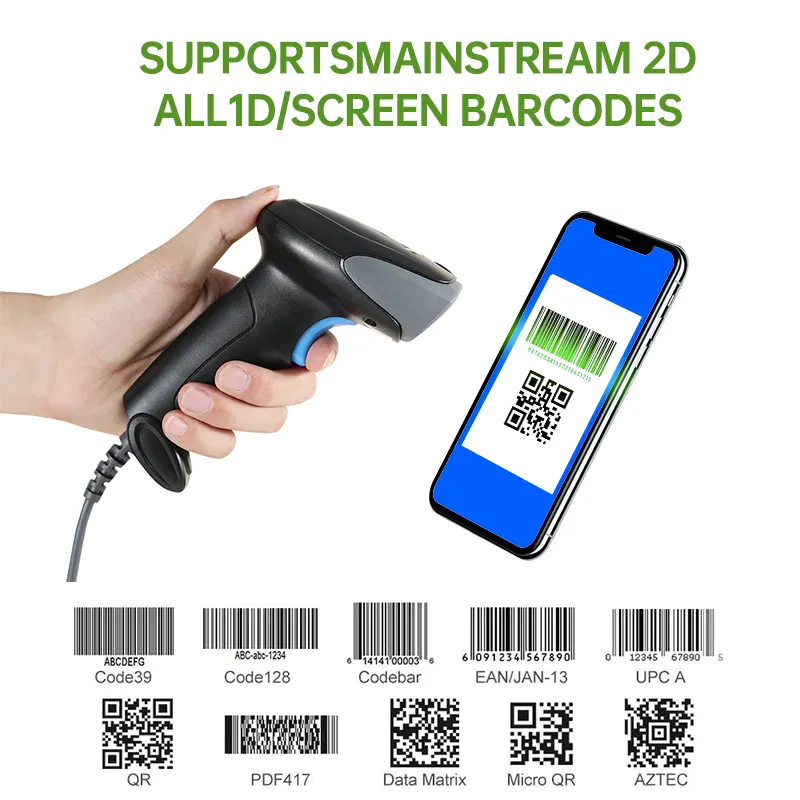

1D Decoding Capability
EAN-13 EAN-8 UPC-E UPC-A Code 39 Code 93 Code 128 UCC/EAN 128 Codabar Interleaved 2 of 5 ITF-6 ITF-14 ISBN ISSN MSI-Plessey GS1
Databar Code 11 Industrial 2 of 5 Standard 2 of 5 Plessey Matrix 2 of 5
2D Decoding
Capability
Data Matrix QR PDF417 Mrico QR
Aztec Mrico PDF417
Scanning Angel
Roll360Ā°, Pitch55Ā°,Yew55Ā°
Scanning Depth
EAN-13 50mm-200mm (12.50byte) Code39 40mm-90mm (5mil 10 byte) QR Code 25mm-240mm (20mil 16 byte) Data Marix 50mm-90mm (10mil 20
byte) PDF 417 30mm-130mm (7.50mil 7 byte)
Environment Parameter
IP Grade
IP52
Operating Temp.
0 to 50ā„ƒ / 32 to 122ā„‰
Storage Temp.
0 to 50ā„ƒ / 32 to 122ā„‰
Operating Humidity
20% to 85%(No Condensation)
Storage Humidity
20% to 85%(No Condensation)
ESD Protection
15KV air discharge
Shock Resistance
1.2m free fall on concrete surface
